This is a burglar-resistant steel window whose construction complies with the applicable European standards. This window is custom-made, with numerous configuration options and a powder-coated finish. It is therefore suitable for the needs of various sectors.

Download our technical sheet

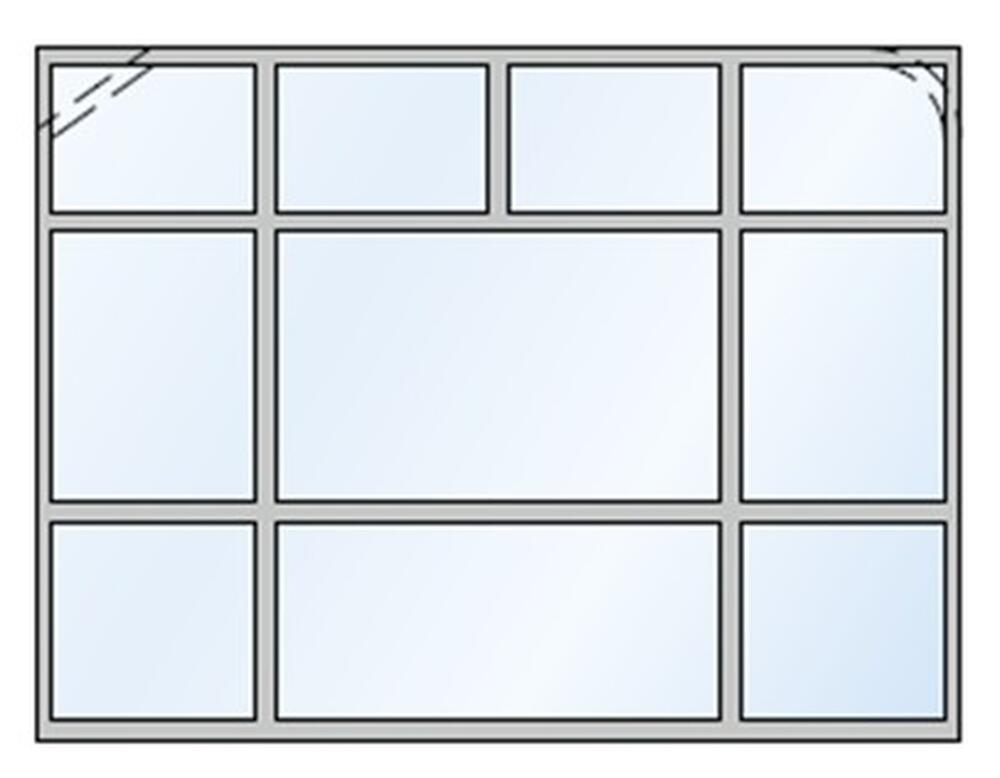

FIXED WINDOW UNIT

Configurations

  • Fixed window with mullion(s) and/or transom(s)

Finishes

Qualisteelcoat class 4 powder coating in standard RAL color chart


Filling

  • Glazing
         - Double burglar-resistant glazing, class P4A, according to EN 356
         - Clicked or screwed glazing beads
         - Installation with an EPDM rubber seal or with glazing tape and sealant

Dimensions

Maximum dimensions and weight depending on static requirements

SPECIFICATIONS

Performance Ratings
Burglar Resistance                                                                                       Class RC2 according to EN 1627
Additional Performance Ratings
Acoustic Insulation                                                                                      Up to 42 dB* according to EN ISO 140-3
Thermal Insulation Uf > 5.6 W/m²K according to EN ISO 10077-1
Wind Resistance Class C4 according to EN 12210
Watertightness Class 8A according to EN 12208
Air Permeability Class 4 according to EN 12207
Impact Resistance Class 5 according to EN 13049

*May vary depending on the size and composition of the entire structure. Follow the recommendations of the profile system manufacturer.

OTHER PRODUCT TYPES WITHIN STEELTEQ

SteelTeq

SteelTeq is a range of glazed technical interior joinery based on a steel profile system. The range includes steel doors and fixed windows, offering a wide selection of performance features.

SecuriTeq

SecuriTeq is a range of security products complementing our windows and doors. We offer comprehensive solutions for the architectural security of assets and individuals across all sectors. This range includes counters, pass-through drawers and hatches, security airlocks, armored walls and rooms, vault doors, vault walls, and secure rooms.
