This burglar-resistant and bulletproof aluminum window complies with current European standards. This window is custom-made, with a variety of possible designs and a powder-coated finish. Therefore, it is suitable for the needs of different sectors.

Download our technical sheet

FIXED WINDOW UNIT

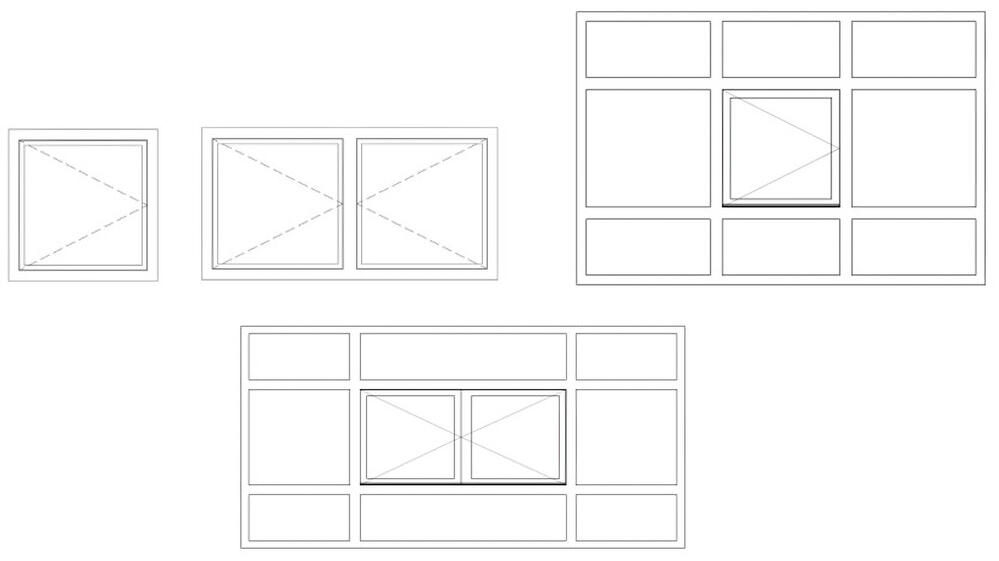

Configurations

  • Single Fixed window
  • Fixed window with mullion(s) and/or transom(s)

Finishes

Qualisteelcoat class 4 powder coating in standard RAL color chart


Filling

  • Glazing
       - Single or double burglar-resistant glass, class P6B according to EN 356, and bulletproof glass, class BR4 according to EN 1063, with a maximum total thickness of 57 mm
       - Clip-in glazing beads
       - Installation with EPDM rubber sealing

Dimensions

  • Minimum: W 550 x H 600 mm
  • Maximum: W 1450 x H 1800 mm
  • Maximum weight: 160 kg

SPECIFICATIONS

Performance Ratings
Burglar Resistance                                                                                                           Class RC4 according to EN 1627
Bulletproof Classe FB4 according to EN 1522
Additional Performance Ratings
CE Marking According to EN 14351-1
Acoustic Insulation Up to 44 dB (-2;-4)* according to EN ISO 717-1
Thermal Insulation Uf = 2,03 W/m²K
Wind Load Resistance                                                                                                     Class C5, B5 according to EN 12210
Watertightness Class E750 according to EN 12208
Air Permeability Class 4 according to EN 12207
Impact Resistance Class 2 according to EN 13049
Operating Force Class 1 according to EN 12217
Mechanical resistance Class 4 according to EN 1192
Frequency of use Class 3 according to EN 12400

* May vary depending on the size and composition of the entire structure. Follow the recommendations of the profile system manufacturer
